#include "MLIR/Interfaces/EnzymeLogic.h"

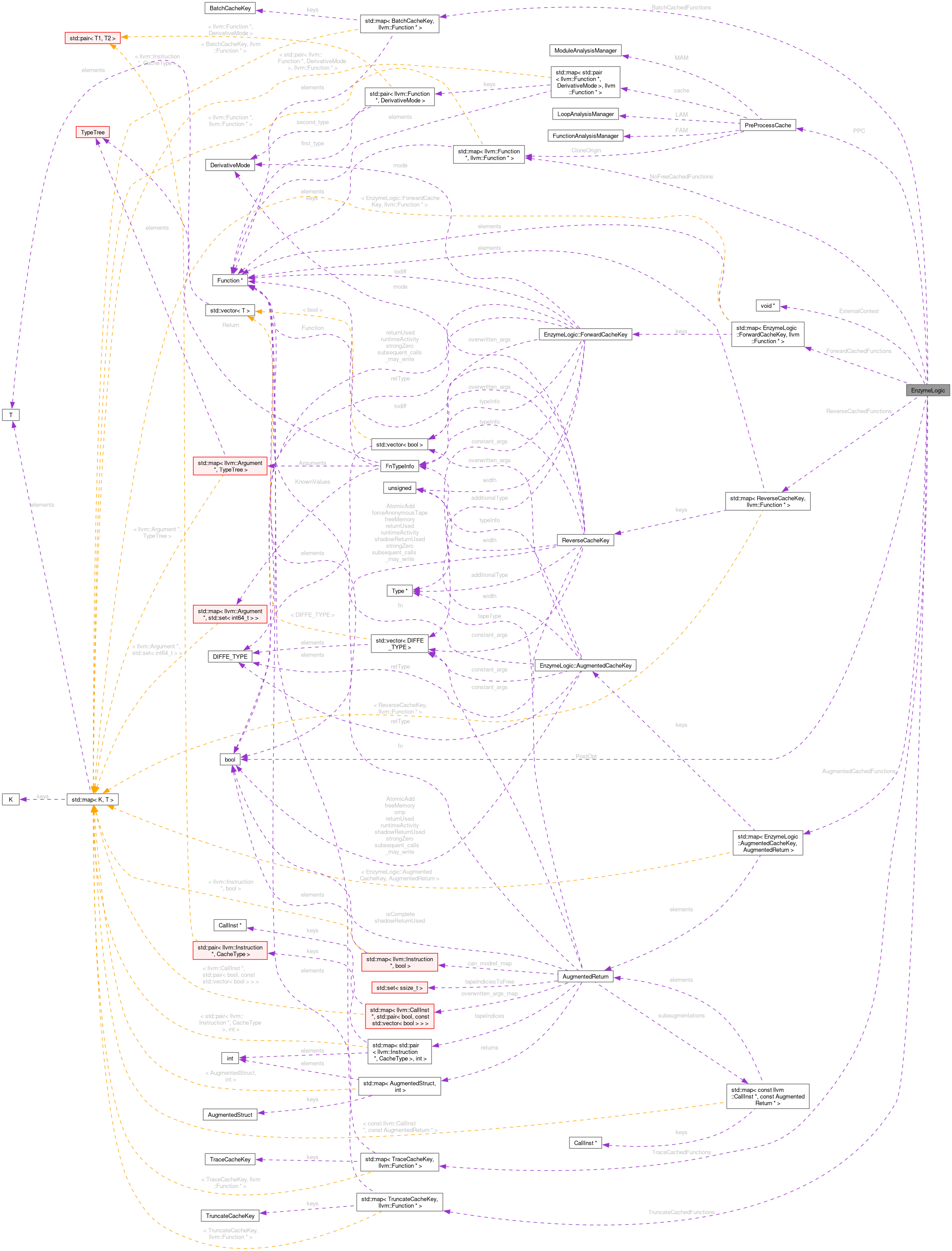

Collaboration diagram for EnzymeLogic:

[legend]

Classes
struct	AugmentedCacheKey

struct	ForwardCacheKey

Public Types
using	BatchCacheKey

using	TraceCacheKey

using	TruncateCacheKey

Public Member Functions
	EnzymeLogic (bool PostOpt)

llvm::Function *	CreateNoFree (RequestContext context, llvm::Function *todiff)

llvm::Value *	CreateNoFree (RequestContext context, llvm::Value *todiff)

const AugmentedReturn &	CreateAugmentedPrimal (RequestContext context, llvm::Function *todiff, DIFFE_TYPE retType, llvm::ArrayRef< DIFFE_TYPE > constant_args, TypeAnalysis &TA, bool returnUsed, bool shadowReturnUsed, const FnTypeInfo &typeInfo, bool subsequent_calls_may_write, const std::vector< bool > _overwritten_args, bool forceAnonymousTape, bool runtimeActivity, bool strongZero, unsigned width, bool AtomicAdd, bool omp=false)
	Create an augmented forward pass.

llvm::Function *	CreatePrimalAndGradient (RequestContext context, const ReverseCacheKey &&key, TypeAnalysis &TA, const AugmentedReturn *augmented, bool omp=false)
	Create the reverse pass, or combined forward+reverse derivative function.

llvm::Function *	CreateForwardDiff (RequestContext context, llvm::Function todiff, DIFFE_TYPE retType, llvm::ArrayRef< DIFFE_TYPE > constant_args, TypeAnalysis &TA, bool returnValue, DerivativeMode mode, bool freeMemory, bool runtimeActivity, bool strongZero, unsigned width, llvm::Type additionalArg, const FnTypeInfo &typeInfo, bool subsequent_calls_may_write, const std::vector< bool > _overwritten_args, const AugmentedReturn *augmented, bool omp=false)
	Create the forward (or forward split) mode derivative function.

llvm::Function *	CreateBatch (RequestContext context, llvm::Function *tobatch, unsigned width, llvm::ArrayRef< BATCH_TYPE > arg_types, BATCH_TYPE ret_type)
	Create a function batched in its inputs.

llvm::Function *	CreateTruncateFunc (RequestContext context, llvm::Function *tobatch, FloatTruncation truncation, TruncateMode mode)

bool	CreateTruncateValue (RequestContext context, llvm::Value *addr, FloatRepresentation from, FloatRepresentation to, bool isTruncate)

llvm::Function *	CreateTrace (RequestContext context, llvm::Function totrace, const llvm::SmallPtrSetImpl< llvm::Function > &sampleFunctions, const llvm::SmallPtrSetImpl< llvm::Function * > &observeFunctions, const llvm::StringSet<> &ActiveRandomVariables, ProbProgMode mode, bool autodiff, TraceInterface *interface)
	Create a traced version of a function `context` the instruction which requested this trace (or null).

void	clear ()

Public Attributes
PreProcessCache	PPC

bool	PostOpt
	`PostOpt` is whether to perform basic optimization of the function after synthesis

void *	ExternalContext
	Provided through the frontend and only used from it.

std::map< llvm::Function , llvm::Function >	NoFreeCachedFunctions

std::map< AugmentedCacheKey, AugmentedReturn >	AugmentedCachedFunctions

std::map< ReverseCacheKey, llvm::Function * >	ReverseCachedFunctions

std::map< ForwardCacheKey, llvm::Function * >	ForwardCachedFunctions

std::map< BatchCacheKey, llvm::Function * >	BatchCachedFunctions

std::map< TraceCacheKey, llvm::Function * >	TraceCachedFunctions

std::map< TruncateCacheKey, llvm::Function * >	TruncateCachedFunctions

Detailed Description

Definition at line 450 of file EnzymeLogic.h.

Member Typedef Documentation

◆ BatchCacheKey

using EnzymeLogic::BatchCacheKey

Initial value:

std::tuple<llvm::Function *, unsigned,

std::vector<BATCH_TYPE>, BATCH_TYPE>

BATCH_TYPE

Definition Utils.h:385

Definition at line 685 of file EnzymeLogic.h.

◆ TraceCacheKey

using EnzymeLogic::TraceCacheKey

Initial value:

std::tuple<llvm::Function *, ProbProgMode, bool, TraceInterface *>

Definition at line 689 of file EnzymeLogic.h.

◆ TruncateCacheKey

using EnzymeLogic::TruncateCacheKey

Initial value:

std::tuple<llvm::Function *, FloatTruncation, unsigned>

Definition at line 747 of file EnzymeLogic.h.

Constructor & Destructor Documentation

◆ EnzymeLogic()

EnzymeLogic::EnzymeLogic ( bool PostOpt )

inline

Definition at line 460 of file EnzymeLogic.h.

Member Function Documentation

◆ clear()

void EnzymeLogic::clear ( )

Definition at line 6794 of file EnzymeLogic.cpp.

◆ CreateAugmentedPrimal()

const AugmentedReturn & EnzymeLogic::CreateAugmentedPrimal	(	RequestContext	context,
		llvm::Function *	todiff,
		DIFFE_TYPE	retType,
		llvm::ArrayRef< DIFFE_TYPE >	constant_args,
		TypeAnalysis &	TA,
		bool	returnUsed,
		bool	shadowReturnUsed,
		const FnTypeInfo &	typeInfo,
		bool	subsequent_calls_may_write,
		const std::vector< bool >	_overwritten_args,
		bool	forceAnonymousTape,
		bool	runtimeActivity,
		bool	strongZero,
		unsigned	width,
		bool	AtomicAdd,
		bool	omp = false )

Create an augmented forward pass.

return structtype if recursive function

context the instruction which requested this derivative (or null). todiff is the function to differentiate retType is the activity info of the return constant_args is the activity info of the arguments returnUsed is whether the primal's return should also be returned typeInfo is the type info information about the calling context subsequent_calls_may_write denotes whether an instruction between forward and reverse may write to memory potentially read by this function. _overwritten_args marks whether an argument may be rewritten before loads in the generated function (and thus cannot be cached). forceAnonymousTape forces the tape to be an i8* rather than the true tape structure AtomicAdd is whether to perform all adjoint updates to memory in an atomic way

Explicitly handle all returns first to ensure that all instructions know whether or not they are used

Keep track of inverted pointers we may need to return

Definition at line 1998 of file EnzymeLogic.cpp.

Referenced by AdjointGenerator::recursivelyHandleSubfunction(), and AdjointGenerator::visitOMPCall().

◆ CreateBatch()

llvm::Function * EnzymeLogic::CreateBatch	(	RequestContext	context,
		llvm::Function *	tobatch,
		unsigned	width,
		llvm::ArrayRef< BATCH_TYPE >	arg_types,
		BATCH_TYPE	ret_type )

Create a function batched in its inputs.

context the instruction which requested this batch (or null). tobatch is the function to batch width is the vector width requested. arg_types denotes which arguments are batched. ret_type denotes whether to batch the return.

Definition at line 5812 of file EnzymeLogic.cpp.

Referenced by InstructionBatcher::visitCallInst().

◆ CreateForwardDiff()

Function * EnzymeLogic::CreateForwardDiff	(	RequestContext	context,
		llvm::Function *	todiff,
		DIFFE_TYPE	retType,
		llvm::ArrayRef< DIFFE_TYPE >	constant_args,
		TypeAnalysis &	TA,
		bool	returnValue,
		DerivativeMode	mode,
		bool	freeMemory,
		bool	runtimeActivity,
		bool	strongZero,
		unsigned	width,
		llvm::Type *	additionalArg,
		const FnTypeInfo &	typeInfo,
		bool	subsequent_calls_may_write,
		const std::vector< bool >	_overwritten_args,
		const AugmentedReturn *	augmented,
		bool	omp = false )

Create the forward (or forward split) mode derivative function.

context the instruction which requested this derivative (or null). todiff is the function to differentiate retType is the activity info of the return constant_args is the activity info of the arguments TA is the type analysis results returnValue is whether the primal's return should also be returned mode is the requested derivative mode is whether we should free memory allocated here (and could be accessed externally). width is the vector width requested. additionalArg is the type (or null) of an additional type in the signature to hold the tape. FnTypeInfo is the known types of the argument and returns subsequent_calls_may_write denotes whether an instruction between forward and reverse may write to memory potentially read by this function. _overwritten_args marks whether an argument may be rewritten before loads in the generated function (and thus cannot be cached). augmented is the data structure created by prior call to an augmented forward pass omp is whether this function is an OpenMP closure body.

Definition at line 4666 of file EnzymeLogic.cpp.

Referenced by AdjointGenerator::recursivelyHandleSubfunction().

◆ CreateNoFree() [1/2]

llvm::Function * EnzymeLogic::CreateNoFree	(	RequestContext	context,
		llvm::Function *	todiff )

Referenced by AdjointGenerator::visitCallInst().

◆ CreateNoFree() [2/2]

llvm::Value * EnzymeLogic::CreateNoFree	(	RequestContext	context,
		llvm::Value *	todiff )

Definition at line 6199 of file EnzymeLogic.cpp.

◆ CreatePrimalAndGradient()

Function * EnzymeLogic::CreatePrimalAndGradient	(	RequestContext	context,
		const ReverseCacheKey &&	key,
		TypeAnalysis &	TA,
		const AugmentedReturn *	augmented,
		bool	omp = false )

Create the reverse pass, or combined forward+reverse derivative function.

context the instruction which requested this derivative (or null). augmented is the data structure created by prior call to an augmented forward pass

Definition at line 3691 of file EnzymeLogic.cpp.

Referenced by AdjointGenerator::recursivelyHandleSubfunction(), and AdjointGenerator::visitOMPCall().

◆ CreateTrace()

llvm::Function * EnzymeLogic::CreateTrace	(	RequestContext	context,
		llvm::Function *	totrace,
		const llvm::SmallPtrSetImpl< llvm::Function * > &	sampleFunctions,
		const llvm::SmallPtrSetImpl< llvm::Function * > &	observeFunctions,
		const llvm::StringSet<> &	ActiveRandomVariables,
		ProbProgMode	mode,
		bool	autodiff,
		TraceInterface *	interface )

Create a traced version of a function context the instruction which requested this trace (or null).

totrace is the function to trace sampleFunctions is a set of the functions to sample observeFunctions is a set of the functions to observe ActiveRandomVariables is a set of which variables are active mode is the mode to use autodiff is whether to also differentiate interface specifies the ABI to use.

Definition at line 6099 of file EnzymeLogic.cpp.

Referenced by TraceGenerator::handleArbitraryCall().

◆ CreateTruncateFunc()

llvm::Function * EnzymeLogic::CreateTruncateFunc	(	RequestContext	context,
		llvm::Function *	tobatch,
		FloatTruncation	truncation,
		TruncateMode	mode )

Definition at line 5724 of file EnzymeLogic.cpp.

◆ CreateTruncateValue()

bool EnzymeLogic::CreateTruncateValue	(	RequestContext	context,
		llvm::Value *	addr,
		FloatRepresentation	from,
		FloatRepresentation	to,
		bool	isTruncate )

Definition at line 5702 of file EnzymeLogic.cpp.

Member Data Documentation

◆ AugmentedCachedFunctions

std::map<AugmentedCacheKey, AugmentedReturn> EnzymeLogic::AugmentedCachedFunctions

Definition at line 566 of file EnzymeLogic.h.

◆ BatchCachedFunctions

std::map<BatchCacheKey, llvm::Function *> EnzymeLogic::BatchCachedFunctions

Definition at line 687 of file EnzymeLogic.h.

◆ ExternalContext

void* EnzymeLogic::ExternalContext

Provided through the frontend and only used from it.

Definition at line 458 of file EnzymeLogic.h.

Referenced by EnzymeGradientUtilsGetExternalContext().

◆ ForwardCachedFunctions

std::map<ForwardCacheKey, llvm::Function *> EnzymeLogic::ForwardCachedFunctions

Definition at line 683 of file EnzymeLogic.h.

◆ NoFreeCachedFunctions

std::map<llvm::Function *, llvm::Function *> EnzymeLogic::NoFreeCachedFunctions

Definition at line 562 of file EnzymeLogic.h.

◆ PostOpt

bool EnzymeLogic::PostOpt

PostOpt is whether to perform basic optimization of the function after synthesis

Definition at line 456 of file EnzymeLogic.h.

◆ PPC

PreProcessCache EnzymeLogic::PPC

Definition at line 452 of file EnzymeLogic.h.

Referenced by DiffeGradientUtils::CreateFromClone().

◆ ReverseCachedFunctions

std::map<ReverseCacheKey, llvm::Function *> EnzymeLogic::ReverseCachedFunctions

Definition at line 593 of file EnzymeLogic.h.

◆ TraceCachedFunctions

std::map<TraceCacheKey, llvm::Function *> EnzymeLogic::TraceCachedFunctions

Definition at line 691 of file EnzymeLogic.h.

◆ TruncateCachedFunctions

std::map<TruncateCacheKey, llvm::Function *> EnzymeLogic::TruncateCachedFunctions

Definition at line 749 of file EnzymeLogic.h.

The documentation for this class was generated from the following files:

MLIR/Interfaces/EnzymeLogic.h
MLIR/Interfaces/EnzymeLogic.cpp
