DifferentialUseAnalysis.h File Reference

#include <map>
#include <set>
#include "llvm/IR/BasicBlock.h"
#include "llvm/IR/Instruction.h"
#include "llvm/ADT/ArrayRef.h"
#include "llvm/ADT/SmallPtrSet.h"
#include "llvm/ADT/SmallVector.h"
#include "llvm/Support/Casting.h"
#include "llvm/Support/ErrorHandling.h"
#include "DiffeGradientUtils.h"
#include "GradientUtils.h"
#include "LibraryFuncs.h"

Include dependency graph for DifferentialUseAnalysis.h:

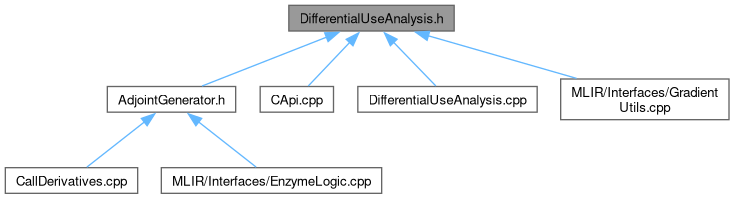

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	DifferentialUseAnalysis::Node

Namespaces
namespace	DifferentialUseAnalysis

Typedefs
typedef std::pair< const llvm::Value *, QueryType >	UsageKey
using	DifferentialUseAnalysis::Graph = std::map<Node, std::set<Node>>

Enumerations
enum class	QueryType { Primal = 0 , Shadow = 1 , ShadowByConstPrimal = 2 }
	Classification of what type of use is requested. More...

Functions
static std::string	to_string (QueryType mode)
bool	DifferentialUseAnalysis::is_use_directly_needed_in_reverse (const GradientUtils *gutils, const llvm::Value *val, DerivativeMode mode, const llvm::Instruction *user, const llvm::SmallPtrSetImpl< llvm::BasicBlock * > &oldUnreachable, QueryType shadow, bool *recursiveUse=nullptr)
	Determine if a value is needed directly to compute the adjoint of the given instruction user.
template<QueryType VT, bool OneLevel = false>
bool	DifferentialUseAnalysis::is_value_needed_in_reverse (const GradientUtils *gutils, const llvm::Value *inst, DerivativeMode mode, std::map< UsageKey, bool > &seen, const llvm::SmallPtrSetImpl< llvm::BasicBlock * > &oldUnreachable)
template<QueryType VT>
static bool	DifferentialUseAnalysis::is_value_needed_in_reverse (const GradientUtils *gutils, const llvm::Value *inst, DerivativeMode mode, const llvm::SmallPtrSetImpl< llvm::BasicBlock * > &oldUnreachable)
void	DifferentialUseAnalysis::dump (std::map< Node, std::set< Node > > &G)
void	DifferentialUseAnalysis::bfs (const std::map< Node, std::set< Node > > &G, const llvm::SetVector< llvm::Value * > &Recompute, std::map< Node, Node > &parent)
int	DifferentialUseAnalysis::cmpLoopNest (llvm::Loop *prev, llvm::Loop *next)
void	DifferentialUseAnalysis::minCut (const llvm::DataLayout &DL, llvm::LoopInfo &OrigLI, const llvm::SetVector< llvm::Value * > &Recomputes, const llvm::SetVector< llvm::Value * > &Intermediates, llvm::SetVector< llvm::Value * > &Required, llvm::SetVector< llvm::Value * > &MinReq, const GradientUtils *gutils, llvm::TargetLibraryInfo &TLI)
	DifferentialUseAnalysis::__attribute__ ((always_inline)) static inline void forEachDirectInsertUser(llvm
bool	DifferentialUseAnalysis::callShouldNotUseDerivative (const GradientUtils *gutils, llvm::CallBase &orig, QueryType qtype, const llvm::Value *val)
	Return whether or not this is a constant and should use reverse pass.

Variables
llvm::cl::opt< bool >	EnzymePrintDiffUse
llvm::StringMap< std::function< bool(const llvm::CallInst *, const GradientUtils *, const llvm::Value *, bool, DerivativeMode, bool &)> >	customDiffUseHandlers

Typedef Documentation

UsageKey

typedef std::pair<const llvm::Value *, QueryType> UsageKey

Definition at line 79 of file DifferentialUseAnalysis.h.

Enumeration Type Documentation

QueryType

enum class QueryType

strong

Classification of what type of use is requested.

Enumerator
Primal
Shadow
ShadowByConstPrimal

Definition at line 57 of file DifferentialUseAnalysis.h.

Function Documentation

to_string()

static std::string to_string ( QueryType mode )

inlinestatic

Definition at line 67 of file DifferentialUseAnalysis.h.

References Primal, Shadow, and ShadowByConstPrimal.

Variable Documentation

customDiffUseHandlers

llvm::StringMap< std::function<bool(const llvm::CallInst *, const GradientUtils *, const llvm::Value *, bool, DerivativeMode, bool &)> > customDiffUseHandlers

extern

Definition at line 54 of file DifferentialUseAnalysis.cpp.

Referenced by EnzymeRegisterDiffUseCallHandler().

EnzymePrintDiffUse

llvm::cl::opt<bool> EnzymePrintDiffUse

extern

Referenced by DifferentialUseAnalysis::is_value_needed_in_reverse().
